AKF398 Analog Devices Three Axis Accelerometer Sensor Low Frequency Vibration

  • 1
  • 2
  • 3

Usage : VIBRATION SENSOR

Theory : MEMS

Output : Analog SENSOR

Brand : accelerometer sensor

Mounting Type : standard , magnetic

Measuring Range : max +/-40G

Accelerometer output : 4-20mA

power supply : 9-36V

anti-impact : 2000G

working temperatur : -40°C ~ +85°C

store temperature : -55°C ~ +100°C

size : L34.4*W34.4*H38mm

weight : 73.5g

measuring range : ±2g ,±4g,±8g,±10g ,±20g,±40g

Resolution/Threshold (@ 1Hz) : < 1mg(max)

Bandwidth (3Db)) : 1000Hz

Certification : CE, ISO

MOQ : 1

Payment Terms : T/T, PAYPAL

Supply Ability : 3000/month

Delivery Time : 7 days for samples

Model Number : AKF398-A1

Place of Origin : Guangdong, China

Brand Name : RION

Packaging Details : cartons

Price : $235.00/Pieces

Contact Now

AKF398 Analog Devices Three Axis Accelerometer Sensor Low Frequency Vibration

The AKF398 triaxial accelerometer is a voltage output type accelerometer independently developed and produced by RION Technology, which can be used in many fields such as vibration test and impact test. The product adopts analog voltage output, different address codes can be set, and multiple sensors are connected in series for a long distance, which is convenient for multi-point measurement and data analysis. AKF398 is a single crystal silicon capacitive sensor, which consists of a silicon chip processed by micro-machines, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, calibrated, sturdy structure and stable output. The new electronic configuration provides solid-state power for reset and comprehensive protection from over-voltage. The products have the characteristics of sturdy structure, low power consumption, excellent deviation stability, etc., to ensure the reliability of product output.

▶ PRODUCT FEATURES

★ Three axis (X,Y,Z)
★ output voltage: 4-20mA
★ power supply:9-36V
★ anti-impact:2000G
★ working temperature: -40°C ~ +85°C
★ store temperature: -55°C ~ +100°C
★ size: L34.4×W34.4×H38mm
★ weight: 73.5g
★ excellent bias stability
★ Good environmental performance (impact, vibration and temperature)

▶ APPLICATION

★ Crash record, fatigue monitoring and prediction

★ Wind power generation

★ Traffic system monitoring, roadbed analysis and high-speed railway fault detection

★ Large machinery, engine

★Low frequency vibration and automatic monitoring

★ Medical equipment

★ Vehicle


▶ PRODUCT PARAMETERS
Range
±2
±4
±8
±10
±20
±40
g
Deviation Calibration
<1
<1
<1
<1
<1
<1
mg

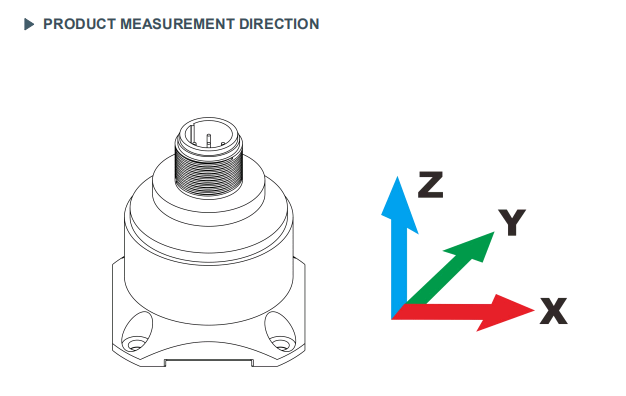

Measuring Axial
X,Y,Z
X,Y,Z
X,Y,Z
X,Y,Z
X,Y,Z
X,Y,Z
axis
Up/Off Power Repeatability
<2
<2
<2
<2
<2
<2
mg(max)
Sensitivity (± 10%)
4
2
1
0.8
0.4
0.2
mA/g
Deviation temperature coefficient
0.01
0.01
0.01
0.05
0.05
0.05
%/℃
Resolution/Threshold (@ 1Hz)
< 1
< 1
< 1
< 1
< 1
< 1
mg(max)
Nonlinearity
<0.5
<0.5
<0.8
<1
<1
<1
% FS(max)
Frequency response
500
500
500
500
500
500
Hz
Bandwidth (3Db)
1000
1000
1000
1000
1000
1000
Hz
Cross-axis sensitivity
1
1
1
2
2
2
%
Lateral vibration sensitivity ratio
1
1
2
5
5
5
%
Resonant frequency
2.4
2.1
2.4
5.5
5.5
5.5
kHz
noise density
21
21
21
86.6
86.6
86.6
μg/√Hz
0g output 12mA
<0.005
<0.005
<0.005
<0.003
<0.003
<0.003
mA
Output current
4~20mA
Reliability
MIL-HDBK-217,grade two
Shock Resistance
100g@11ms,Triaxial And Identical (Half Sine Wave)
Recovery Time
<1ms(1000g, 1/2 sin 1ms, Shock Acting On The i Axis)
Vibration
20g Rms,20~2000Hz (Random Noise ,o ,p,i Per Axis For Action 30 Minutes )
Input(VDD_VSS)
9-36 VDC
Running current consumption
<60mA @ 12 VDC

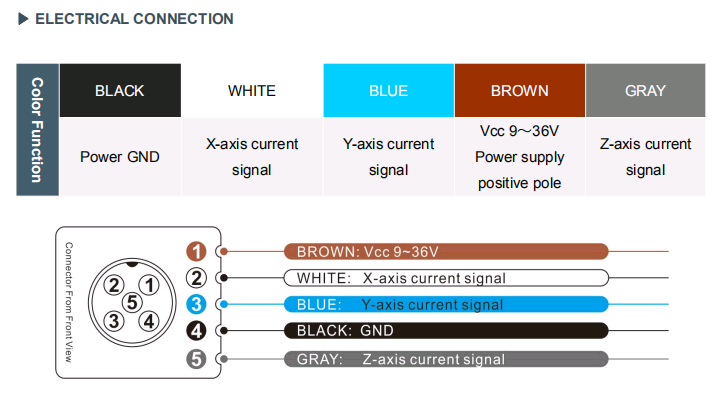

Connector
Industrial Standard M12 Connector
Weight
73.5g

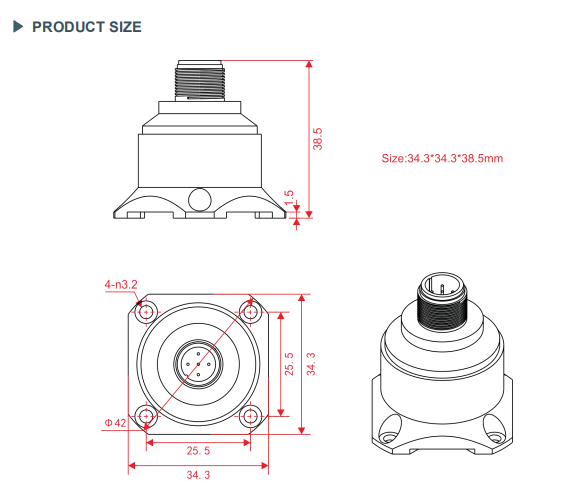

Dimension
34.3*34.3*38.5mm
AKF398 Analog Devices Three Axis Accelerometer Sensor Low Frequency Vibration
AKF398 Analog Devices Three Axis Accelerometer Sensor Low Frequency Vibration

AKF398 Analog Devices Three Axis Accelerometer Sensor Low Frequency Vibration
AKF398 Analog Devices Three Axis Accelerometer Sensor Low Frequency Vibration
